The Thunderbolt 4 / USB4 Compact Dock is designed for extra connectivity demands and supports Thunderbolt 4 and USB4 hub function with Intel Thunderbolt 4 solution Goshen Ridge. It can support all USB functions from traditional USB 2 to USB4, VESA Alternate mode ( MFDP ), Thunderbolt 3, 4. It also can support dynamic PD up to 85W to charge the laptop. With an additional USB-A port, it can support legacy USB devices up to USB 3.1 Gen 2.
This Compact dock also supports a smart power design with 100W PSU. Power delivery to a laptop will be dynamic up to 85W depends on the power usage for the downstream ports.
Feature
|

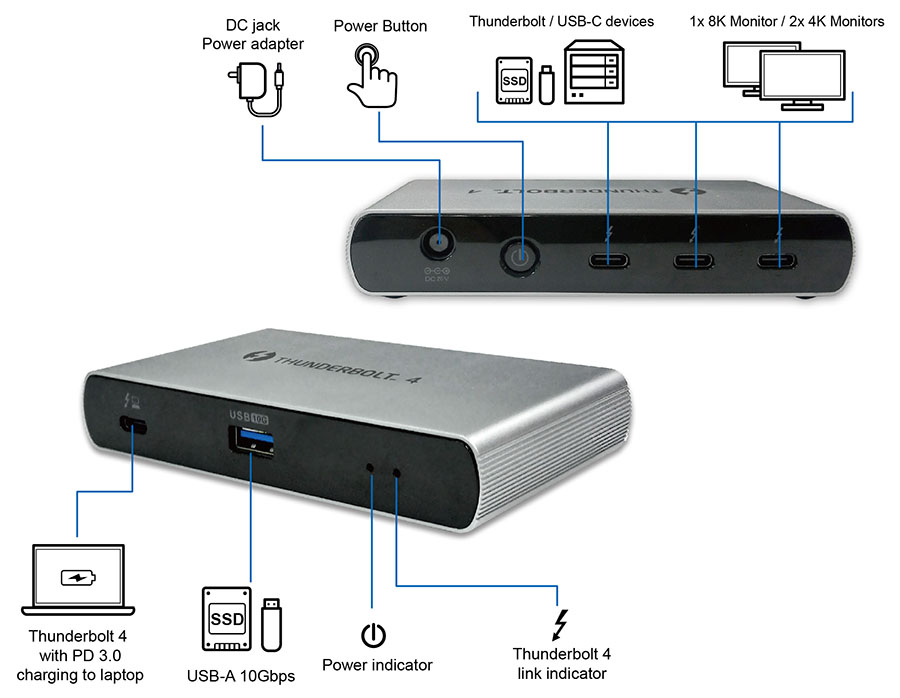

- Thunderbolt 4 Ports
- 1x Thunderbolt 4 / USB4 upstream port
- 3x Thunderbolt 4 / USB4 downstream ports - Video Output Ports
- Thunderbolt 4 downstream port supports video output
- Single 8K30 or 4K120 display
- Dual 4K60 displays - PD Charging
- PD 3.0 up to 85W
- Supports 5 /9/15 /20V, up to 4.25A - I/O Ports
- 1x USB-A 3.1 Gen 2 downstream port (with BC 1.2 and Apple Charge supported) - Power Button
- Firmware Upgradeable
- USB-C Port Protection
- Provides 20V short-to-VBUS over-current protection
| Specification |
Hardware Spec | Q'ty | Remark | Upstream port | Thunderbolt 4 / USB4 | 1 | Support up to PD 96W | Downstream port | Thunderbolt 4 / USB4 | 3 | | USB-A 3.1 Gen 2 | 1 | With BC1.2 (5V/1.5A) and Apple Charge 2.1A | Power In | DC 100W | 1 | | Operation Temperature | 0 to 35 degree | Storage Temperature | -20 to 70 degree | PD Charging | PD3.0 up to 85W (20V/15V/9V/5V, 4.25A) |
* Specification is subject to change without notice. |
|
